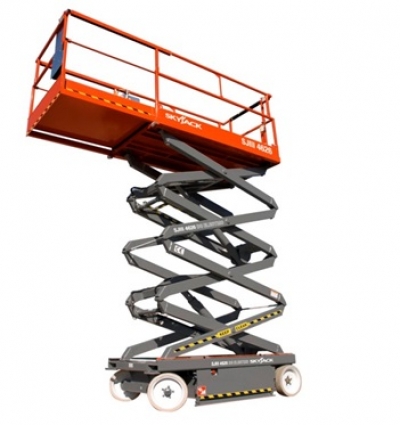

Self-propelled scissor lift (electric) :: SKYJACK SJIII 4626
Specification

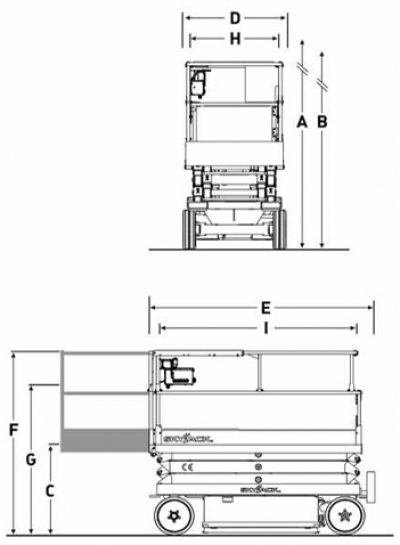

| A. Work Height | 9.9 m |
| B. Raised Platform Height | 7.9 m |
| C. Lowered Platform Height | 1.1 m |
| D. Overall Width | 1.2 m |
| E. Overall Length | 2.3 m |
| F. Stowed Height (Rails Up) | 2.2 m |
| G. Stowed Height (Rails Down) | 1.8 m |
| H. Platform Width (Inside Dimension) | 1.1 m |
| I. Platform Length (Inside Dimension) | 2.1 m |
| Extension Deck (Roll Out) | 1.2 m |
| Ground Clearance (Stowed) | 8.9 cm |
| Ground Clearance (Raised) | 1.9 cm |
| Wheelbase | 1.8 m |
| Weight | 2170 kg |
| Gradeability | 30% |
| Turning Radius (Inside) | 1.2 m |
| Turning Radius (Outside) | 2.4 m |
| Lift Time (With Rated Load) | 54 sec. |
| Drive Speed (Stowed) | 3.2 km/h |
| Drive Speed (Raised) | 1.0 km/h |
| Maximum Drive Height | Full Height |
| Capacity (Overall) | 454 kg |
| Maximum # of Persons | 3 |
STANDARD FEATURES
- Drivable at full height
- Variable speed, rear two wheel hydraulic drive
- Dual holding brakes
- Proportional controls for drive & lift functions
- 1.2 m roll out extension deck
- 24V DC power source
- Low voltage battery protection
- Analog control system
- Colour coded and numbered wiring system
- Up to 30% gradeability
- Solid rubber, non-marking tyres
- Pothole protection system
- Wiring for AC outlet on platform
- Tilt alarm with drive & lift cut-out
- Overload sensing system
- Lowering warning system
- Operator horn
- Half height spring hinged gate
- All motion audible alarm
OPTIONS
- Flashing light
- Shop airline to platform
- 250 AH batteries
- Pipe racks
