Self-propelled scissor lift (electric) :: JLG 2646 ES

JLG 2646 ES<p<img loading=lazy class=fr-dib fr-draggable src=/login/images/JLG-2646-ES---9f5dce68e037b25abeeba7c8ae45f363e3f3d547.jpg style=width: 300px; alt=JLG 2646 ES sema
JLG 2646 ES<p<img loading=lazy class=fr-dib fr-draggable src=/login/images/JLG-2646-ES---9f5dce68e037b25abeeba7c8ae45f363e3f3d547.jpg style=width: 300px; alt=JLG 2646 ES sema
Visina podizanja 9,92m
Nosivost 450kg
Težina mašine 2.430kg
Rent Buy

Specification

Download print version

Performance:

Platform Height (max.)
7.92 m
Working Height
9.92 m
Lift Time/Lower Time
41 / 50 sec
Platform Capacity Standard
450 kg

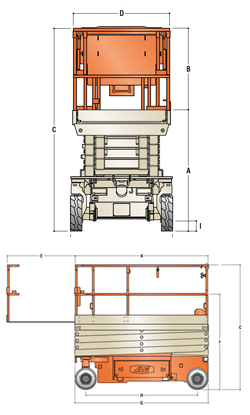

Dimensions:

C. Stowed Height - Rails Up
2.36 m
J. Stowed Height - Rails Lowered
1.97 m
F. Overall Width
1.17 m
G. Overall Length
2.50 m
H. Wheelbase
2.09 m
I. Ground Clearance
0.13 m
D. Platform Width
1.12 m
K. Platform Length
2.50 m
E. Standard Platform Extension
1.27 m
A. Platform Height Lowered
1.26 m
B. Platform Railing Height
1.10 m
Maximum Drive Height
7.92 m
Power:

Power Source
Battery
DC Voltage
24 V
DC Power
220 Amp h
Batteries
4 x 6 V
Chasis:

Tyre Size
406 x 125
Tyre Type
Solid/Non-marking
Inside Turn Radius
0 m
Outside Turn Radius
2.41 m
Drive Speed Elevated
0.8 km/h
Gradeability with 2WD
25%
Max Persons on Platform
2
Operating Weight
2,700 kg



STANDARD FEATURES

  • Proportional Controls
  • Industry Leading Duty Cycles
  • Drywall Gate
  • Battery Condition Indicator
  • Fold-Down Guard Rails
  • 220V-AC Receptacle in Platform
  • Slide-Out Battery Trays
  • Automatic Traction Control (ATC)
  • All Motion Alarm
  • Horn
  • Manual Descent Pull Cable
  • Tilt Alarm and Light
  • Lanyard Attach Points
  • Moveable, Removable Platform Control
  • Console with Rail Mounting Bracket
  • Lubrication Free Scissor Arm Bushings
  • Scissor Maintenance Prop
  • Mechanized Pothole Protection
  • Machine Tie Downs
  • Fork Lift Pockets, Lift from Side and Rear

OPTIONS

  • Spring-Loaded Gate
  • Flashing Amber Beacon
  • 245 Amp-Hour Batteries5
  • Platform Padding
  • Platform Padding with Proximity Switches
  • 13mm Airline to Platform
  • Nite Bright8
