JLG E300 AJP

E300AJP gallery silo

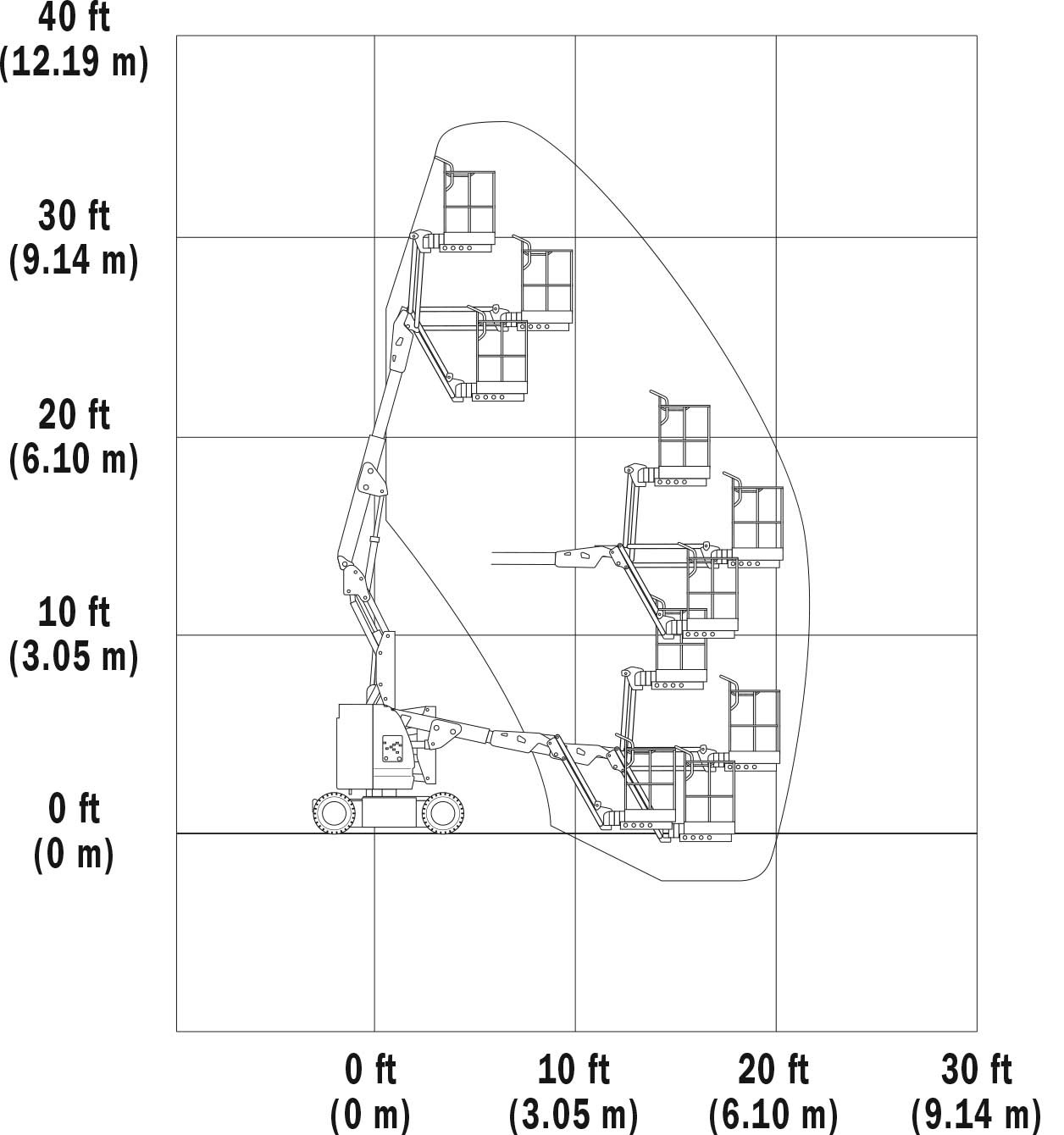

e300ajp Reach Diagram
B9IU0IJRLs0TwAAAABJRU5ErkJggg==
Visina podizanja 10,97m
Nosivost 230kg
Težina mašine 7.100kg
Rent Buy

Download printing version

Reach:

Work Height
10.97 m
Horizontal Outreach
6.77 m
Up and Over Height
4.01 m
Swing
350° (Non-Continuous)
Platform Capacity
230 kg
Platform Rotator
180° Hydraulic
Jib (Length)
1.22 m
Jib (Range of Articulation)
144° (+84°/-60°)
Dimensions:

A. Platform Size
0.76 x 1.22 m
B. Overall Width
1.22 m
C. Tail swing (working condition)
0.00 m
D. Stowed Height
2.01 m
E. Stowed Length
5.74 m
F. Wheelbase
1.65 m
G. Ground Clearance
0.10 m
Weight
7,100 kg
Max. Ground Bearing Pressure
11.95 kg/cm2
Chassis:

Drive Speed
7.2 km/h
Gradeability
25%
Tires Rear
25 x 7 -12 Non-marking
Turning Radius Inside
1.52 m


Power Source:

Electrical System
48V AC
Batteries
8 x 6V 305 A/hr
Drive Motors
Dual Electric Traction
Brakes
Automatic Spring Applied
Hydraulic Motor
Perm. Magnet
Hydraulic Pump
Gear Pump
Hydraulic Reservoir
20 l
